CRUDE HEATER REVAMP

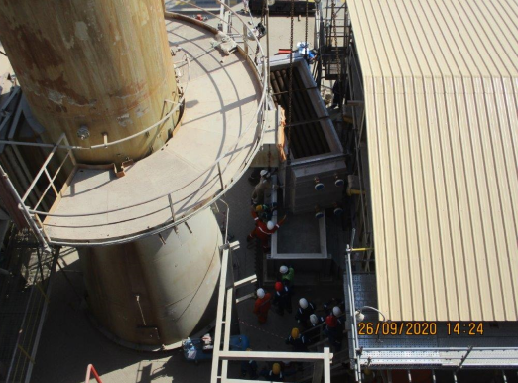

XRG recently retrofitted a convection section in a crude heater that was originally built in 1935. The new convection bank consists of two sections; the lower half is used to preheat the crude while the upper section is used to generate superheated steam.

The Problem: Currently, the site is processing crudes that are heavier than the original design crude. As a result, process data shows the absorbed duty is 33% lower than what the furnace was originally designed for. To meet the customer’s needs, the furnace also needs to produce 8 – 11 ton/h steam. To meet that requirement the furnace is operated at high excess air, with flue gas oxygen content typically ranging between 6% and 8% by volume (wet) which is bad for fuel-efficiency. The current efficiency varies between 82-85%, substantially less than the design of 88.5%.

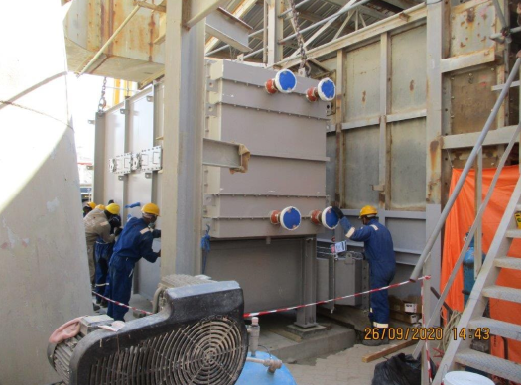

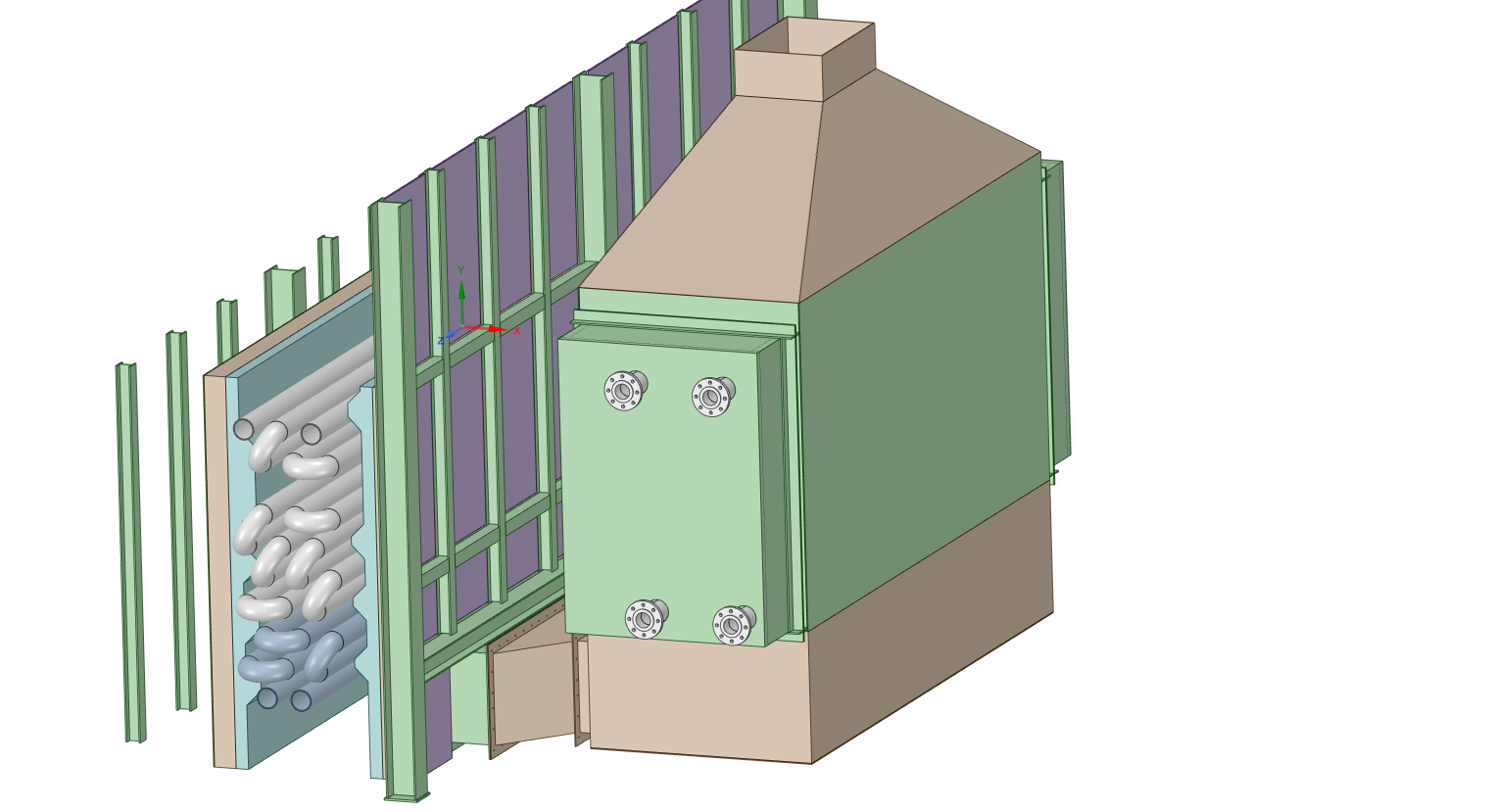

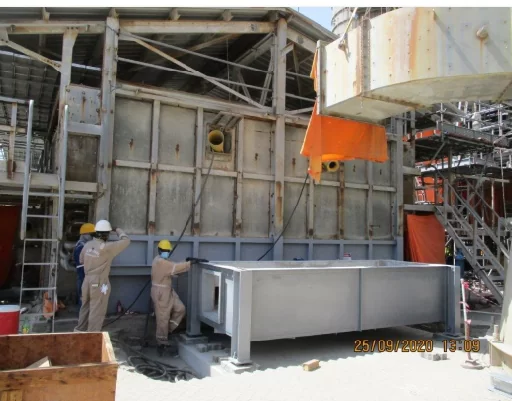

The Solution: XRG completed an engineering study that proved the convection section needed to be replaced to meet the customer’s needs. Subsequently XRG provided full engineering, design, and supply of an auxiliary convection section module complete with sootblowers and upgraded steam coil material for installation in the existing convection section.

XRG new convection module met the customers’ requirements of fuel efficiency, absorbed duty, steam production, and replaced existing steam coils with a higher heat resistance material to prevent partial tube replacements at every turnaround. This project exemplifies XRG’s capabilities and our goal of being a true engineering partner to our clients.
