Use Xceed™ to lower radiant coil temperatures in CCR Heaters

Posted on
By KD Deshmukh, Senior Process Engineer

Continuous Catalyst Regeneration (CCR) reformers convert naphtha feedstock into high-octane gasoline and aromatics. The catalytic reactor consists of multiple stages, and fired heaters are used before each stage to heat the process vapor to the required reaction temperature. Due to standard operating conditions, these heaters require specialized coil and burner arrangements, such as arbor/wicket coils with side-fired burners.

Depending on firing rate and fuel composition, flames from opposed burners can become elongated and crash together, causing hot spots on the radiant tubes:

CFD modeling shows that adding three XceedTM nozzles on each wall can lower the burner duty by 50%, which caused the flames to become significantly shorter and stop colliding with each other. The increased disengagement space between the flames alleviates the hot spots on the radiant coil while reducing the NOx emissions.

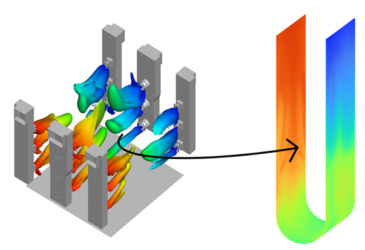

Figure 1: Current operation with flame impingement

CFD models indicate that adding three XceedTM nozzles on each wall can lower the burner duty by 50%, significantly shortening the flames and stopping collision. The increased disengagement space between flames helps alleviate hot spots on the radiant coil while reducing NOx emissions.

With RFG and hydrogen firing, XceedTM technology delivers outstanding results:

  • 40% NOx reduction
  • 65° Celsius reduction in TMT
  • 20% lower peak-to-average heat flux ratio

CFD modeling shows that adding three XceedTM nozzles on each wall can lower the burner duty by 50%, which caused the flames to become significantly shorter and stop colliding with each other.

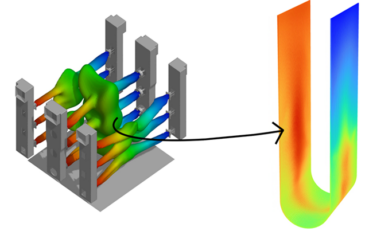

Figure 2: XceedTM in operation with shorter flames and lower NOx



Reach out to us at info@xrgtechnologies.com or call us at 918-201-2656 to see what XceedTM can do for your heaters and how it can increase profitability by solving multiple heater problems simultaneously.
